當前位置: 首頁 > 核心產品 > 條碼掃描器,掃描槍 > 進口品牌 > 邁思肯Microscan > 邁思肯Microscan HAWK MV-4000 智能相機

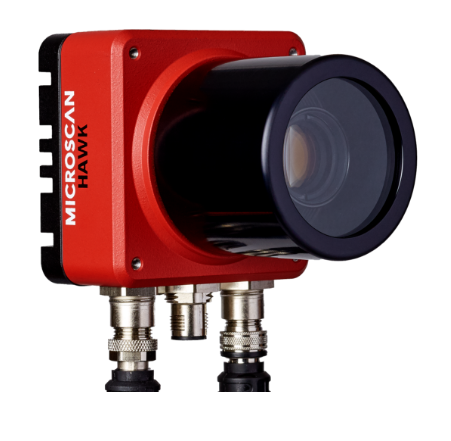

邁思肯Microscan HAWK MV-4000 智能相機
邁思肯Microscan HAWK MV-4000 智能相機
  • 產品說明
  • 主要特征
  • 技術指標
  • 適用行業
  • 資源下載

    • HAWK MV-4000堅固的外殼內裝有令人驚嘆的處理能力和優異的靈活性。 這款智能相機采用FPGA，將上一代的處理能力提高了數倍，實現了實時觸發響應。擁有領先的算法，HAWK MV-4000可以成為各行業實現代碼閱讀，代碼驗證，檢查，引導定位，測量或各種組合功能的理想工具。

    HAWK MV-4000的以圖像為中心的用戶界面和拖放式編程使設置變得簡單。 普通的操作員或技術人員會喜歡直觀的AutoVISION用戶界面（UI），可以使用讀取，驗證和視覺工具隨時讀取。機器視覺方面的專家將可以訪問另一個名為FrontRunner的界面，以獲得HAWK MV-4000的全部潛力。

    擁有幾乎達到基于PC系統速度的處理能力，這個智能相機可以真正實現以一當十。 IVision的工程師們把它稱為基于PC的相機和市場上普通的智能相機之間的“黃金中心”。 使用HAWK MV-4000，不需要外部處理即可達到每分鐘4,000至14,000個零件的檢查率。



    邁思肯Microscan HAWK MV-4000 智能相機型號表
    Part NumberDescription
    8011-0000-0100HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV SENSOR
    8011-0000-0101HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV
    8011-0000-0102HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VS
    8011-0000-0103HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VERIF/OCV
    8011-0000-0104HAWK MV-4000-03, 0.3 MP (640X480), MONO, AV+VS+VERIF/OCV
    1.3 MP Mono
    8012-0000-0100HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV SENSOR
    8012-0000-0101HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV
    8012-0000-0102HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VS
    8012-0000-0103HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VERIF/OCV
    8012-0000-0104HAWK MV-4000-13, 1.3 MP (1280X1024), MONO, AV+VS+VERIF/OCV
    2.0 MP Mono
    8013-0000-0100HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV SENSOR
    8013-0000-0101HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV
    8013-0000-0102HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VS
    8013-0000-0103HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VERIF/OCV
    8013-0000-0104HAWK MV-4000-20, 2.0 MP (1920X1200), MONO, AV+VS+VERIF/OCV
    5.0 MP Mono
    8014-0000-0100HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV SENSOR
    8014-0000-0101HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV
    8014-0000-0102HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VS
    8014-0000-0103HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VERIF/OCV
    8014-0000-0104HAWK MV-4000-50, 5.0 MP (2592X2048), MONO, AV+VS+VERIF/OCV
    0.3 MP Color
    8015-0000-0100HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV SENSOR
    8015-0000-0101HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV
    8015-0000-0102HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VS
    8015-0000-0103HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VERIF/OCV
    8015-0000-0104HAWK MV-4000-03C, 0.3 MP (640X480), COLOR, AV+VS+VERIF/OCV
    1.3 MP Color
    8016-0000-0100HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV SENSOR
    8016-0000-0101HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV
    8016-0000-0102HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VS
    8016-0000-0103HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VERIF/OCV
    8016-0000-0104HAWK MV-4000-13C, 1.3 MP (1280X1024), COLOR, AV+VS+VERIF/OCV
    2.0 MP Color
    8017-0000-0100HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV SENSOR
    8017-0000-0101HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV
    8017-0000-0102HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VS
    8017-0000-0103HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VERIF/OCV
    8017-0000-0104HAWK MV-4000-20C, 2.0 MP (1920X1200), COLOR, AV+VS+VERIF/OCV
    5.0 MP Color
    8018-0000-0100HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV SENSOR
    8018-0000-0101HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV
    8018-0000-0102HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VS
    8018-0000-0103HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VERIF/OCV
    8018-0000-0104HAWK MV-4000-50C, 5.0 MP (2592X2048), COLOR, AV+VS+VERIF/OCV




    HAWK 4000 LENSES AND LENS CAPS
    Standard Resolution for 2/3" Sensors - (General Inspection, Reading, Some Verification)
    98-9000167-01LENS, C-MOUNT, 6MM, STANDARD RES, 2/3" SENSOR
    98-9000168-01LENS, C-MOUNT, 9MM, STANDARD RES, 2/3" SENSOR
    98-9000169-01LENS, C-MOUNT, 12.5MM, STANDARD RES, 2/3" SENSOR
    98-9000170-01LENS, C-MOUNT, 16MM, STANDARD RES, 2/3" SENSOR
    98-9000171-01LENS, C-MOUNT, 25MM, STANDARD RES, 2/3" SENSOR
    98-9000172-01LENS, C-MOUNT, 35MM, STANDARD RES, 2/3" SENSOR
    High Resolution for 2/3" Sensors - (Gauging, Verification)
    98-9000192-01LENS, C-MOUNT, 6MM, HIGH RES, 2/3" SENSOR
    98-9000165-01LENS, C-MOUNT, 8MM, HIGH RES, 2/3" SENSOR
    98-9000166-01LENS, C-MOUNT, 12MM, HIGH RES, 2/3" SENSOR
    98-9000154-01LENS, C-MOUNT, 16MM, HIGH RES, 2/3" SENSOR
    98-9000164-01LENS, C-MOUNT, 25MM, HIGH RES, 2/3" SENSOR
    98-9000163-01LENS, C-MOUNT, 35MM, HIGH RES, 2/3" SENSOR
    High Resolution for 1" Sensors - (All applications. Required for 1" 5 MP Sensor)
    98-9000174-01LENS, C-MOUNT, 12.5MM, HIGH RES, 1" SENSOR
    98-9000175-01LENS, C-MOUNT, 16MM, HIGH RES, 1" SENSOR
    98-9000176-01LENS, C-MOUNT, 25MM, HIGH RES, 1" SENSOR
    98-9000177-01LENS, C-MOUNT, 35MM, HIGH RES, 1" SENSOR
    C-Mount Liquid Lens
    98-9000179-01LENS, LIQUID, C-MOUNT, F2.8/16MM, 2/3" SENSOR, I2C INTERFACE
    98-9000178-01LENS, LIQUID, C-MOUNT, F4/25MM, 2/3" SENSOR, I2C INTERFACE
    Lens Accessories
    98-9000155-01IP67 LENS COVER FOR HAWK 4000, 50MM LENGTH
    98-9000156-01IP67 LENS COVER HAWK 4000, 70MM LENGTH
    98-CO206Lens Extension Tube Set, 0.5 mm, 1 mm, 5 mm, 10 mm, 20 mm, 40 mm




    HAWK 4000 CABLES, LIGHT CONTROL CABLE AND POWER SUPPLY
    HAWK 4000 X-CODE Ethernet Port Cables
    61-9000134-01CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 1 METER
    61-9000134-02CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 3 METER
    61-9000134-03CABLE, HAWK 4000 ETHERNET, X-CODE/RJ45 CAT 6A, 5 METER
    HAWK 4000 VGA/USB Port Connector Cables
    61-9000143-01 CABLE, HAWK 4000 M12 TO USB FEMALE, 1 METER
    61-9000147-01 CABLE, HAWK 4000 M12 TO VGA & USB, 1 METER
    HAWK 4000 Digital IO Port Connector Cables
    61-9000132-01CABLE, ADAPTER, HAWK 4000 TO ACCESSORY CABLES/POWER SUPPLY (Supplied with camera)
    61-9000151-01CABLE, HAWK 4000 M12 TO FLYING LEADS, 3 METER (NO ADAPTOR NEEDED)
    QX-1 Interface Cables and Accessories
    61-000162-02 QX CORDSET, HAWK 4000 ADAPTOR TO QX-1 M12 PLUG (SCREW-ON), 1 METER
    61-000148-02 QX CORDSET, HAWK 4000 ADAPTOR TO QX-1 M12 PLUG (SCREW-ON), 3 METER
    98-000103-02 QX-1 INTERFACE DEVICE
    99-000020-02 QX Photo Sensor, M12 4-Pin Plug, NPN, Dark On, 2 meter
    99-000020-01 QX Photo Sensor, M12 4-Pin Plug, NPN, Dark Off, 2 meter
    20-610024-01 Trigger Connector, 4-Pin Plug (Screw Terminal, Field-Wireable) (Self-Wiring)
    SMART LIGHT CONTROL CABLES
    61-9000135-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, POWER, 1 METER
    61-9000136-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, ON/OFF, 1 METER
    61-9000137-01Y CABLE, HAWK 4000 ADAPTOR TO SMART LIGHT AND QX-1, STROBE, 1 METER
    61-000204-01 CABLE, QX-1 TO SMART LIGHT, CONTINUOUS POWER
    61-000207-01CABLE, QX-1 TO SMART LIGHT, ON/OFF
    61-000218-01* CABLE, QX-1 TO SMART LIGHT, STROBE
    Power Supply
    97-000012-01 Power Supply, 100-240VAC, +24VDC, M12 12-pin Socket




    HAWK 4000 AND SMART LIGHT MOUNTS
    Standard Mounts
    TBDUNIVERSAL MOUNT, HAWK 4000
    98-9000054-01 APG MOUNT, HAWK 4000 (REQUIRES UNIVERSAL MOUNT)
    Smart Light/HAWK 4000 Mounting Kits
    98-9000120-01KIT, BRACKET, MAX 300 TO HAWK 4000
    98-9000121-01KIT, BRACKET, DOAL TO HAWK 4000
    98-9000122-01KIT, BRACKET, RING 60/70 TO HAWK 4000
    98-9000123-01KIT, BRACKET, RING 100 TO HAWK 4000
    98-9000137-01KIT, SMART SERIES PHARMALITE, ARCHERFISH




    LICENSING
    HAWK 4000 License Upgrades
    LIC-0700-003*LICENSE,MACHINE VISION,AUTOVISION
    LIC-0700-006*LICENSE,MACHINE VISION,VISIONSCAPE
    LIC-0700-009*LICENSE,MACHINE VISION,VERIFICATION/OCV
    LIC-0700-011*LICENSE,MACHINE VISION,AUTOVISION SENSOR
    LIC-0700-325*LICENSE,MACHINE VISION,MACHINE VISION UNLOCK




    Camera Kits - with License, Lens, IP Cover and Mount
    0.3 MP, Standard Lens
    8211-1090-0102HAWK MV-4000-03, AV+VS, 9MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8111-1160-0102HAWK MV-4000-03, AV+VS, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    1.3 MP, Standard Lens
    8112-1120-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 12.5MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8112-1250-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 25MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    1.3 MP, High Res Lens
    8212-2160-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 16MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8212-2250-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 25MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8212-2350-0104HAWK MV-4000-13, AV+VS+VERIF/OCV, 35MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    2.0 MP, Standard Lens
    8113-1160-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8113-1350-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 35MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    2.0 MP, High Res Lens
    8213-2160-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 16MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8213-2250-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 25MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    8213-2350-0104HAWK MV-4000-20, AV+VS+VERIF/OCV, 35MM HIGH RES LENS, IP COVER, UNIVERSAL MOUNT
    2.0 Color, Standard Lens
    8117-1090-0102HAWK MV-4000-20C, AV+VS, 9MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8117-1160-0102HAWK MV-4000-20C, AV+VS, 16MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    8117-1350-0102HAWK MV-4000-20C, AV+VS, 35MM STANDARD LENS, IP COVER, UNIVERSAL MOUNT
    5.0 MP, 1" Lens
    8014-3160-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 16MM 1" LENS, NO COVER, UNIVERSAL MOUNT
    8214-3250-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 25MM 1" LENS, IP COVER, UNIVERSAL MOUNT
    8214-3350-0104HAWK MV-4000-50, AV+VS+VERIF/OCV, 35MM 1" LENS, IP COVER, UNIVERSAL MOUNT


    型號

    HAWK MV-4000-03

    HAWK MV-4000-03C

    HAWK MV-4000-13

    HAWK MV-4000-13C

    HAWK MV-4000-20

    HAWK MV-4000-20C

    HAWK MV-4000-50

    HAWK MV-4000-50C


    傳感器

    品牌和型號

    安森美半導體 – Python 系列 (NOIP1SN 或 NOIP1SE)

    安森美半導體 – Python 系列 (NOIP1SN 或 NOIP1SE)

    類型

    CMOS

    芯片尺寸

    1/4”-Type

    1/2”-Type

    2/3”-Type

    1”-Type

    格式

    黑白

    彩色

    黑白

    彩色

    黑白

    彩色

    黑白

    彩色

    分辨率 (H x V)

    640 x 480

    1280 x 1024

    1920 x 1200

    2592 x 2048

    有效幀率

    最高 240 FPS

    最高 120 FPS

    最高 75 FPS

    最高 32 FPS

    最高 42 FPS

    最高 20 FPS

    最高 21 FPS

    最高8.5 FPS

    像素尺寸 (H x V)

    4.8 μm x 4.8 μm

    增益范圍

    0 至 19.4 dB

    快門速度

    50 μsec 至 4 sec

    觸發器響應

    外部觸發器輸出延遲 = 10μs。 抖動= 1 - 2μs。


    處理器，內存及存儲

    處理器

    雙核

    內存

    2GB RAM

    存儲

    32GB


    接口

    網絡

    千兆以太網

    HMI

    VGA 和 USB 2.0 (連接鍵盤和鼠標)

    數字 I/O

    3個光耦輸入（帶增量旋轉編碼器支持），1個專用光耦觸發，3個外部選通輸出

    其他

    Varioptic Caspian 自動對焦鏡頭專用接口


    機械，電氣，環保

    鏡頭類型

    C-Mount

    連接器

    M12 8針以太網插座; M12 12針插座，用于電源，數字I / O和LED照明強度控制; M12 12針插頭用于VGA和USB

    重量

    460 g

    能量消耗

    450 mA @ 24VDC 或 10.8W (一般情況)



    邁思肯Microscan HAWK MV-4000 智能相機附件表



    This section contains information about system components as well as information to help you connect the HAWK MV-4000 Smart Camera. Specific information describes connectors, adapters, cables, pinouts, and signals.
    HAWK MV-4000 Smart Cameras (All cameras ship with an adapter cable.)
    0.3 Megapixel Mono
    8011-0000-0100HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION Sensor
    8011-0000-0101HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION
    8011-0000-0102HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Visionscape
    8011-0000-0103HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Verification / OCV
    8011-0000-0104HAWK MV-4000-03, 0.3 Megapixel (640 x 480), Mono, AutoVISION + Visionscape + Verification / OCV
    1.3 Megapixel Mono
    8012-0000-0100HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION Sensor
    8012-0000-0101HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION
    8012-0000-0102HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Visionscape
    8012-0000-0103HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Verification / OCV
    8012-0000-0104HAWK MV-4000-13, 1.3 Megapixel (1280 x 1024), Mono, AutoVISION + Visionscape + Verification / OCV
    2.0 Megapixel Mono
    8013-0000-0100HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION Sensor
    8013-0000-0101HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION
    8013-0000-0102HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Visionscape
    8013-0000-0103HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Verification / OCV
    8013-0000-0104HAWK MV-4000-20, 2.0 Megapixel (1920 x 1200), Mono, AutoVISION + Visionscape + Verification / OCV
    5.0 Megapixel Mono
    8014-0000-0100HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION Sensor
    8014-0000-0101HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION
    8014-0000-0102HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Visionscape
    8014-0000-0103HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Verification / OCV
    8014-0000-0104HAWK MV-4000-50, 5.0 Megapixel (2592 x 2048), Mono, AutoVISION + Visionscape + Verification / OCV
    0.3 Megapixel Color
    8015-0000-0100HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION Sensor
    8015-0000-0101HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION
    8015-0000-0102HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Visionscape
    8015-0000-0103HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Verification / OCV
    8015-0000-0104HAWK MV-4000-03C, 0.3 Megapixel (640 x 480), Color, AutoVISION + Visionscape + Verification / OCV
    1.3 Megapixel Color
    8016-0000-0100HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION Sensor
    8016-0000-0101HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION
    8016-0000-0102HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Visionscape
    8016-0000-0103HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Verification / OCV
    8016-0000-0104HAWK MV-4000-13C, 1.3 Megapixel (1280 x 1024), Color, AutoVISION + Visionscape + Verification / OCV
    2.0 Megapixel Color
    8017-0000-0100HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION Sensor
    8017-0000-0101HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION
    8017-0000-0102HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Visionscape
    8017-0000-0103HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Verification / OCV
    8017-0000-0104HAWK MV-4000-20C, 2.0 Megapixel (1920 x 1200), Color, AutoVISION + Visionscape + Verification / OCV
    5.0 Megapixel Color
    8018-0000-0100HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION Sensor
    8018-0000-0101HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION
    8018-0000-0102HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Visionscape
    8018-0000-0103HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Verification / OCV
    8018-0000-0104HAWK MV-4000-50C, 5.0 Megapixel (2592 x 2048), Color, AutoVISION + Visionscape + Verification / OCV
    HAWK MV-4000 Lenses and Lens Caps
    Standard Resolution for 2/3" Sensors (General Inspection, Reading, Some Verification)
    98-9000167-01Lens, C-Mount, 6 mm, Standard Resolution, 2/3" Sensor
    98-9000168-01Lens, C-Mount, 9 mm, Standard Resolution, 2/3" Sensor
    98-9000169-01Lens, C-Mount, 12.5 mm, Standard Resolution, 2/3" Sensor
    98-9000170-01Lens, C-Mount, 16 mm, Standard Resolution, 2/3" Sensor
    98-9000171-01Lens, C-Mount, 25 mm, Standard Resolution, 2/3" Sensor
    98-9000172-01Lens, C-Mount, 35 mm, Standard Resolution, 2/3" Sensor
    High Resolution for 2/3" Sensors (Gauging, Verification)
    98-9000192-01Lens, C-Mount, 6 mm, High Resolution, 2/3" Sensor
    98-9000165-01Lens, C-Mount, 8 mm, High Resolution, 2/3" Sensor
    98-9000166-01Lens, C-Mount, 12 mm, High Resolution, 2/3" Sensor
    98-9000154-01Lens, C-Mount, 16 mm, High Resolution, 2/3" Sensor
    98-9000164-01Lens, C-Mount, 25 mm, High Resolution, 2/3" Sensor
    98-9000163-01Lens, C-Mount, 35 mm, High Resolution, 2/3" Sensor
    High Resolution for 1" Sensors (All applications. Required for 1" 5 Megapixel Sensor)
    98-9000174-01Lens, C-Mount, 12.5 mm, High Resolution, 1" Sensor
    98-9000175-01Lens, C-Mount, 16 mm, High Resolution, 1" Sensor
    98-9000176-01Lens, C-Mount, 25 mm, High Resolution, 1" Sensor
    98-9000177-01Lens, C-Mount, 35 mm, High Resolution, 1" Sensor
    C-Mount Liquid Lens
    98-9000179-01Lens, Liquid, C-Mount, F2.8/16 mm, 2/3" Sensor, I2C Interface
    98-9000178-01Lens, Liquid, C-Mount, F4/25 mm, 2/3" Sensor, I2C Interface
    Lens Accessories
    98-9000155-01IP67 Lens Cover for HAWK MV-4000, 50 mm Length
    98-9000156-01IP67 Lens Cover HAWK MV-4000, 70 mm Length
    98-CO206Lens Extension Tube Set, 0.5 mm, 1 mm, 5 mm, 10 mm, 20 mm, 40 mm
    HAWK MV-4000 Cables, Smart Series Illuminator Control Cable, and Power Supply
    HAWK MV-4000 X-CODE Ethernet Port Cables
    61-9000134-01Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 1 m
    61-9000134-02Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 3 m
    61-9000134-03Cable, HAWK MV-4000 Ethernet, X-CODE / RJ45 CAT 6A, 5 m
    HAWK MV-4000 VGA / USB Port Connector Cables
    61-9000143-01Cable, HAWK MV-4000 M12 to USB Socket, 1 m
    61-9000147-01Cable, HAWK MV-4000 M12 to VGA and USB, 1 m
    HAWK MV-4000 Digital I/O Port Connector Cables
    61-9000132-01Cable, Adapter, HAWK MV-4000 to Accessory Cables / Power Supply (Supplied with camera)
    61-9000151-01Cable, HAWK MV-4000 M12 to Flying Leads, 3 m (No Adapter Required)
    QX-1 Interface Cables and Accessories
    61-000162-02QX Cordset, HAWK MV-4000 Adapter to QX-1 M12 Plug (Screw-On), 1 m
    61-000148-02QX Cordset, HAWK MV-4000 Adapter to QX-1 M12 Plug (Screw-On), 3 m
    98-000103-02QX-1 Interface Device
    99-000020-02QX Photo Sensor, M12 4-Pin Plug, NPN, Dark On, 2 m
    99-000020-01QX Photo Sensor, M12 4-Pin Plug, NPN, Dark Off, 2 m
    20-610024-01Trigger Connector, 4-Pin Plug (Screw Terminal, Field-Wireable) (Self-Wiring)
    Smart Series Illuminator Control Cables
    61-9000135-01Y Cable, HAWK MV-4000 Adapter to Smart Series Illuminator and QX-1, Power, 1 m
    61-9000137-01Y Cable, HAWK MV-4000 Adapter to Smart Series Illuminator and QX-1, Strobe, 1 m
    61-000204-01Cable, QX-1 to Smart Series Illuminator, Continuous Power
    61-000218-01*Cable, QX-1 to Smart Series Illuminator, Strobe
    Power Supply
    97-000012-01Power Supply, 100-240VAC, +24VDC, M12 12-pin Socket
    HAWK MV-4000 and Smart Series Illuminator Mount
    Standard Mount
    98-9000054-01APG Mount, HAWK MV-4000 (Requires Universal Mount)
    Smart Series Illuminator / HAWK MV-4000 Mounting Kits
    98-9000120-01Kit, Bracket, MAX 300 to HAWK MV-4000
    98-9000121-01Kit, Bracket, DOAL to HAWK MV-4000
    98-9000122-01Kit, Bracket, Ring 60 / 70 to HAWK MV-4000
    98-9000123-01Kit, Bracket, Ring 100 to HAWK MV-4000
    98-9000137-01Kit, Smart Series Pharmalite, HAWK MV-4000
    Licensing
    HAWK MV-4000 License Upgrades
    LIC-0700-003*License, Machine Vision, AutoVISION
    LIC-0700-006*License, Machine Vision, Visionscape
    LIC-0700-009*License, Machine Vision,Verification / OCV
    LIC-0700-011*License, Machine Vision, AutoVISION Sensor
    LIC-0700-325*License, Machine Vision, Machine Vision Unlock
    Camera Kits with License, Lens, IP Cover, and Mount
    0.3 Megapixel, Standard Lens
    8211-1090-0102HAWK MV-4000-03, AutoVISION + Visionscape, 9 mm Standard Lens, IP Cover, Universal Mount
    8111-1160-0102HAWK MV-4000-03, AutoVISION + Visionscape, 16 mm Standard Lens, IP Cover, Universal Mount
    1.3 Megapixel, Standard Lens
    8112-1120-0104HAWK MV-4000-13, AutoVISION + Visionscape + Verification / OCV, 12.5 mm Std. Lens, IP Cover, Universal Mount
    8112-1250-0104HAWK MV-4000-13, AutoVISION + Visionscape + Verification / OCV, 25 mm Std. Lens, IP Cover, Universal Mount
    1.3 Megapixel, High Resolution Lens
    8212-2160-0104HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 16 mm High Res. Lens, IP Cover, Universal Mount
    8212-2250-0104HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 25 mm High Res. Lens, IP Cover, Universal Mount
    8212-2350-0104HAWK MV-4000-13, AutoVISION + Visionscape + Ver. / OCV, 35 mm High Res. Lens, IP Cover, Universal Mount
    2.0 Megapixel, Standard Lens
    8113-1160-0104HAWK MV-4000-20, AutoVISION + Visionscape + Verification / OCV, 16 mm Std. Lens, IP Cover, Universal Mount
    8113-1350-0104HAWK MV-4000-20, AutoVISION + Visionscape + Verification / OCV, 35 mm Std. Lens, IP Cover, Universal Mount
    2.0 Megapixel, High Resolution Lens
    8213-2160-0104HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 16 mm High Res. Lens, IP Cover, Universal Mount
    8213-2250-0104HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 25 mm High Res. Lens, IP Cover, Universal Mount
    8213-2350-0104HAWK MV-4000-20, AutoVISION + Visionscape + Ver. / OCV, 35 mm High Res. Lens, IP Cover, Universal Mount
    2.0 Color, Standard Lens
    8117-1090-0102HAWK MV-4000-20C, AutoVISION + Visionscape, 9 mm Standard Lens, IP Cover, Universal Mount
    8117-1160-0102HAWK MV-4000-20C, AutoVISION + Visionscape, 16 mm Standard Lens, IP Cover, Universal Mount
    8117-1350-0102HAWK MV-4000-20C, AutoVISION + Visionscape, 35 mm Standard Lens, IP Cover, Universal Mount
    5.0 Megapixel, 1" Lens
    8014-3160-0104HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 16 mm 1" Lens, No Cover, Universal Mount
    8214-3250-0104HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 25 mm 1" Lens, IP Cover, Universal Mount
    8214-3350-0104HAWK MV-4000-50, AutoVISION + Visionscape + Verification / OCV, 35 mm 1" Lens, IP Cover, Universal Mount

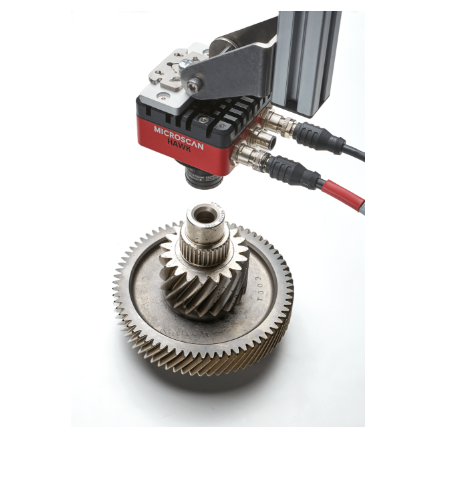

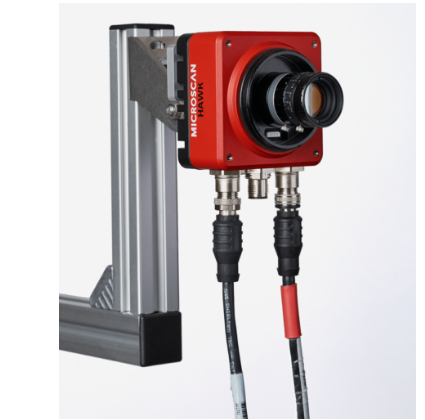

    邁思肯Microscan HAWK MV-4000 智能相機應用



    汽車零件，電子行業，制造行業，模具行業等

    相關產品

    相關文章

  • 工業讀碼器和工業相機的區別是什么？2021-02-03
    • 公交车后车座的疯狂的做小| 亚洲熟妇少妇任你躁在线观看无码| 护士HD老师FREE性ⅩⅩⅩⅩ| 一二三四在线视频观看社区| 欧美性受XXXX黑人XYX性爽| 公侵犯人妻一区二区三区| 亚洲AV无码国产精品色午夜| 老男人久久青草AV高清| 爱丫爱丫在线影院| 香蕉久久久久久AV综合网成人| 久久99国产亚洲高清观看首页| ASSFREE疯狂老妇熟女| 太太其实你也很想要的对吧 | 在线观看AV无需播放器| 人妻无码AⅤ中文字幕| 国产精品亚洲日韩欧美色窝窝色欲| 亚洲色成人一区二区三区小说| 欧美XXXX做受欧美88XX| 国产高清在线精品一本大道| 亚洲色精品一区二区三区| 欧美色成人综合天天影院| 国产精品日日摸夜夜添夜夜添20 | 国产精品VIDEOSSEX久久发布| 亚洲日本人成网站在线播放| 欧美亚洲另类 丝袜综合网| 国产精品无码午夜免费影院| 一面膜上边一面膜下边日本| 日韩一卡2卡3卡4卡新区亚洲| 国内精品久久久久久久影院| 2020久久国产综合精品SWA| 特级小箩利无码毛片| 久久精品日日躁夜夜躁欧美| 爆乳JK美女脱内衣裸体网站| 亚洲AV少妇高潮30p| 女人和拘做受全过程| 国产精品JIZZ在线观看无码 | 无码人妻侵犯一区侵犯| 老师掀起裙子让我挺进| 俄罗斯13一14幻交| 亚洲中文字幕久久久一区| 日韩精品久久久久久久电影蜜臀 | 国产成人午夜福利院| 怡红院亚洲第一综合久久| 日韩人妻无码AⅤ中文字幕 | 国产SM主人调教女M视频| 亚洲中文字幕精品久久| 色妞WWW精品视频| 久久精品国产亚洲77777| 成人无码小视频在线观看| 亚洲人成无码网在线观看APP| 日本丰满妇人成熟免费中文字幕| 娇喘潮喷抽搐高潮在线观看视频| GV天堂GV无码男同在线观看| 亚洲AV无码一期二期三期少妇| 欧美日韩一区二区三区自拍| 国产又粗又猛又爽又黄的视频免费黑人了 | 草莓视频在线观看18| 亚洲精品高清国产一线久久| 人妻在线无码一区二区三区| 精品久久综合1区2区3区激情| 被老外添嫩苞添高潮NP视频| 亚洲色成人一区二区三区| 色爱无码AⅤ综合区| 久久午夜无码鲁丝片秋霞小说| 国产AV永久精品无码| 中国CHINESE壮男GⅤ军警| 未成满18禁止免费无码网站| 男人吃奶摸下挵进去好爽| 国产一区二区波多野结衣| YY8090韩国理伦片在线| 亚洲日韩欧美成人一区二区三区| 日日摸日日碰夜夜爽无码| 老头边吃奶边弄进去呻吟| 国产美女精品自在线拍免费| JK女自慰下面爆浆喷水| 亚洲日韩AV无码中文| 熟睡入侵JEALOUSVUE| 免费极品AV一视觉盛宴| 国精产品一区二区三区糖心269| 暴躁老阿姨CSGO技巧| 野花社区高清在线观看视频| 无码视频免费一区二区三区| 欧洲成人午夜精品无码区久久| 久久97超碰色中文字幕总站| 国产成人精品A视频一区| 337P人体粉嫩胞高清大图AV| 亚洲国产精品久久精品成人网站| 搡老女人老妇女老熟女偷拍| 蜜臀AV网站在线| 护士被强女千到高潮视频| 粉嫩av一区二区三区| 47147人文艺术欣赏| 亚洲精品宾馆在线精品酒店| 天美传媒国色天香乱码| 欧美人与动牲交A免费观看| 久久精品国产精品亚洲艾草网| 国产二级一片内射视频播放| ZOOM人与ZOOMWIDS| 曰韩无码AV片免费播放不卡| 亚洲AV无码片区一区二区三区| 色偷偷色噜噜狠狠成人免费视频 | 亚洲成A∨人片在线观看不卡| 色噜噜国产精品视频一区二区| 免费极品AV一视觉盛宴| 精品无码AV无码免费专区| 国产精品久久国产精麻豆99网站| ZZIJZZIJ亚洲日本少妇J| 又大又黄又粗又爽的免费视频| 亚洲AV无码乱码国产麻豆穿越 | 男人吃奶摸下挵进去好爽在线观看| 精品VIDEOSSEXFREEOHDBBW| 国产激情久久久久影院| 波多野结衣在线播放| 2019在线人妻中文字幕| 亚洲中文字幕波多野结衣| 亚洲AV片在线观看| 调教狠扇打肿私密跪撅屁股作文| 人妻人妇人妻一区二区三区| 免费极品AV一视觉盛宴| 久久久精品人妻一区二区三区四| 国产在线精品一区二区三区直播| 丰满熟妇大肉唇张开| 凹凸国产熟女精品视频国语| 18禁黄污无遮挡无码网站| 夜里18款禁用软件APP| 亚洲成人免费av| 西西人体444WWW大胆无码视| 四川骚妇无套内射舔了更爽 | 久久老司机精品网站福利| 国色精品卡一卡2卡3卡4卡免费| 国产97色在线 | 亚洲| 波多野结衣一区二区三区高清 | 久久国产成人午夜AV影院| 国产在线观看无码免费视频 | 亲胸揉屁股膜下刺激视频免费网站| 麻豆文化传媒WWW| 久久精品国产亚洲AVAPP下载 | 丰满人爽人妻AXXXXHD| 锕锕锕锕锕锕锕好疼免费看网站| 2020精品国产自在现线看 | 好大好硬好深好爽想要AV| 国产精品国产三级欧美二区| 高潮时粗俗不堪入耳的话| 成人AV无码乱码在线观看无码| JAVAPARSER少妇高潮| 2021最新国产在线人成| 在线欧美熟妇内射高潮| 野花日本免费完整版高清版| 亚洲色AV性色在线观无码| 亚洲成人无码av| 亚洲AV永久无码精品九之| 性色AV无码专区亚洲AV毛片子| 无码AV片在线观看免费| 同性男男黄G片免费网站| 少妇呻吟喷水视频正在播放| 色天使色偷偷色噜噜噜AV天堂| 日韩精品无码一区二区三区视频 | 又嫩又硬又黄又爽的视频| 亚洲综合天堂AV网站在线观看| 亚洲男女一区二区三区| 亚洲鲁丝片一区二区三区| 亚洲国产成人极品综合| 亚洲国产精品久久久久久无码 | 国产 校园 另类 小说区| 丰满人妻熟妇乱又伦精品APP| 大白屁股白浆XXⅩSS| 丰满的少妇愉情HD高清免费| 丰满人妻妓熟妇又伦精品软件| 粉嫩av一区二区网站入口| 隔着肚兜偷揉酥乳含乳子| 国产98色在线 | 日韩| 国产成人无码AV在线播放DVD | 欧美熟妇黑人ⅩXXXXX| 欧美日韩精品视频一区二区| 欧美日韩午夜群交多人轮换 | 久久久久无码精品亚洲日韩| 久久精品水蜜桃AV综合天堂| 久久久久久久久久久综合日本| 久久久久夜夜夜精品国产| 老师你的好软水好多的时候图片| 美女自拍高潮流白浆| 免费污站18禁的刺激| 欧美丰满熟妇乱XXXXX流白浆| 欧美亚洲日韩AⅤ在线观看| 人与性动交AAAABBBB| 色噜噜人妻av无码| 天天澡天天添天天摸97影院| 无码人妻一区二区三区精品视频年| 小雪被老外黑人撑破了视频| 亚洲AV永久精品无码| 亚洲人成无码网站| 曰曰摸天天添天天湿| 60老妇VIDEOXXX| 啊灬啊别停灬用力啊| 东京热无码AV一区二区| 国产精品久久久久久久久软件| 国产亚洲精品自在久久VR| 精产国品一二三产区区别在哪儿呢| 久久精品99国产AV精品蜜桃| 蜜桃人妻一区二区三区|
