識別產品Microscan邁思肯掃描器歡迎來電咨詢Microscan邁思肯掃描器價格和型號：020-87030040。

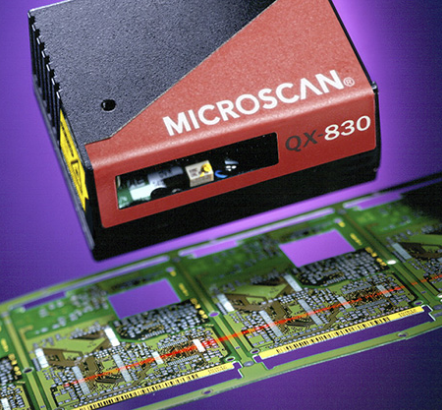

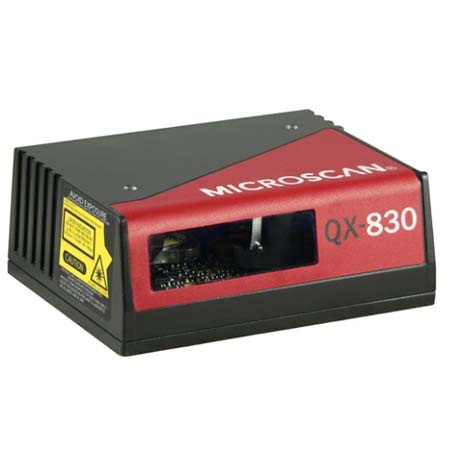

QX-830工業條碼掃描器結合革命性的靈活連接和高性能解碼功能，可在幾乎任何自動化環境中可靠地讀取1D條形碼。除了快速連接系統和X-Mode技術，QX-830具有IP64工業密封和可選的嵌入式以太網協議。

高性能，簡單的連接和IP64外殼使QX-830成為任何工業應用的理想工業條碼掃描器。

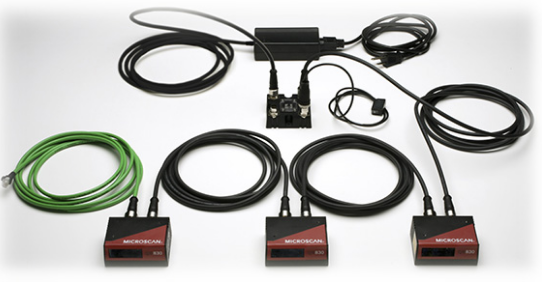

快速連接系統：M12連接器和電線。即插即用設置。單或多掃描儀解決方案

X-Mode技術：解碼損壞，打印不良或未對齊的代碼。確保高讀取速率和吞吐量。

高性能：強大的解碼功能可以在高達10”（254 mm）波束寬度的條件下可靠地讀取條形碼到30”（762 mm）。

實時反饋：掃描儀側面的可見LED指示燈和“良好讀取”綠色閃光燈可確認掃描儀的性能。綠色閃光燈在掃描儀的360度半徑范圍內可見。

以太網協議：QX-830包括可選的嵌入式以太網TCP / IP和EtherNet / IP，用于高速通信。

靈活性：QX-830的緊湊尺寸允許靈活定位各種應用。


Microscan邁思肯QX-830工業用激光掃描器型號表
Part Number	Description
FIS-0830-0001G	QX-830, Industrial Barcode Reader, Single Line, Low Density, Serial
FIS-0830-0002G	QX-830, Industrial Barcode Reader, Single Line, Medium Density, Serial
FIS-0830-0003G	QX-830, Industrial Barcode Reader, Single Line, High Density, Serial
FIS-0830-0004G	QX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial
FIS-0830-0005G	QX-830, Industrial Barcode Reader, Raster Line, Medium Density, Serial
FIS-0830-0006G	QX-830, Industrial Barcode Reader, Raster Line, High Density, Serial
FIS-0830-0010G	QX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial, Plastic Window
FIS-0830-1001G	QX-830, Industrial Barcode Reader, Single Line, Low Density, Serial+Ethernet
FIS-0830-1002G	QX-830, Industrial Barcode Reader, Single Line, Medium Density, Serial+Ethernet
FIS-0830-1003G	QX-830, Industrial Barcode Reader, Single Line, High Density, Serial+Ethernet
FIS-0830-1004G	QX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial+Ethernet
FIS-0830-1005G	QX-830, Industrial Barcode Reader, Raster Line, Medium Density, Serial+Ethernet
FIS-0830-1006G	QX-830, Industrial Barcode Reader, Raster Line, High Density, Serial+Ethernet
FIS-0830-1010G	QX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial+Ethernet, Plastic Window

艾韋迅IVYSUN是Microscan邁思肯掃描器的中國區核心經銷商，貨源充足、確保正品。專業的Microscan邁思肯掃描器產品技術服務團隊，確保您采購使用無后顧之憂！購買國際品牌掃描器，請認準技術型服務商：艾韋迅IVYSUN (http://www.yvopvws.cn)。

Microscan邁思肯QX-830工業用激光掃描器特點

快速連接系統
X-Mode 技術
高性能
實時反饋
以太網協議
擺放靈活

PDF417 碼
MicroPDF 碼
GS1 Databar (RSS 碼)
線性條碼

Microscan邁思肯QX-830工業用激光掃描器配件表
Part Number	Description
QX-1 and Cordsets
98-000103-02	QX-1 Interface Device
61-000148-02	QX Cordset, Common, M12 12 Pin, Socket(Screw-down) to M12 12 Pin Plug(Screw-down), 3M
61-000162-02	QX Cordset, Common, M12 12 Pin, Socket(Screw-down) to M12 12 Pin Plug(Screw-down), 1M
61-000153-02	QX Cordset, Host, Serial M12 12 pin Socket(Screw-down) to DB9 Socket, 1M
61-000164-02	QX Cordset, Host, Serial, M12 12 pin Socket(Screw-down) to DB9 Socket, 1M
61-000152-02	QX Cordset, Host, Serial, M12 12 pin Socket(Screw-down) to DB9 Socket, 1M
61-000165-02	QX Cordset, Host, Serial M12 12 pin Plug(Screw-down) to DB9 Socket, 3M
61-000163-02	QX Cordset, Host, Ethernet, M12 8 pin Plug(Screw-down) to RJ45, 3M
61-000160-02	QX Cordset, Host, Ethernet, M12 8 pin Plug(Screw-down) to RJ45, 1M
61-000161-02	QX Cordset, M12 12 pin Plug(Screw-down) to MS-5100, 3M
61-000166-02	QX Cordset, M12 12 Pin Plug(Screw-down) to Flying Leads, 3M
61-000167-02	QX Cordset, M12 12 Pin Socket(Screw-down) to Flying Leads, 3M
FIS-0210-0001G	MS-Connect 210, Connectivity Box with Display
FIS-0210-0002G	MS-Connect 210, Connectivity Box
FIS-0210-0003G	MS-Connect 210, Connectivity Box with Display and Ethernet
FIS-0210-0004G	MS-Connect 210, Connectivity Box with Ethernet
98-000013-04	Relay Module, 120VAC, 3 Amp Output, Series 70, Type SM, for MS-Connect 210
98-000013-05	Relay Module, 240VAC, 3 Amp Output, Series 70, Type SM for MS-Connect 210
98-000013-06	Relay Module, 24VDC, 3 Amp Output, Series 70, Type SM for MS-Connect 210
Power Supplies
97-000012-01	QX Power Supply, M12 12 pin Socket, 1.3m
97-000012-04	QX Power Supply, M12 12 pin Plug, 1.3m
Mounting and Connectors
98-500006-01	Mounting Plate Kit, Flat, Custom Surfaces
98-200026-02	Right Angle Mirror Kit
20-610024-01	Trigger Connector, 4-pin Plug (screw terminal and field wireable) (for self wiring)
98-000016-01	Mounting Arm/Adapter Kit, MS-820/QX-830/QX-870, 6 inch
98-000037-01	Extension Kit, All Scanners, 6 inch
98-000054-01	Kit, Mounting Stand Base Plate, Small
Package Detector/Sensor
99-000020-02	QX Photo sensor, M12 4pin Plug, NPN, Dark On, 2m
99-000020-01	QX Photo sensor, M12 4pin Plug, NPN, Dark Off, 2m
Software/Manuals
37-000001-01	TOOLS CD, User’s Manuals, ESP Software
